详细介绍：

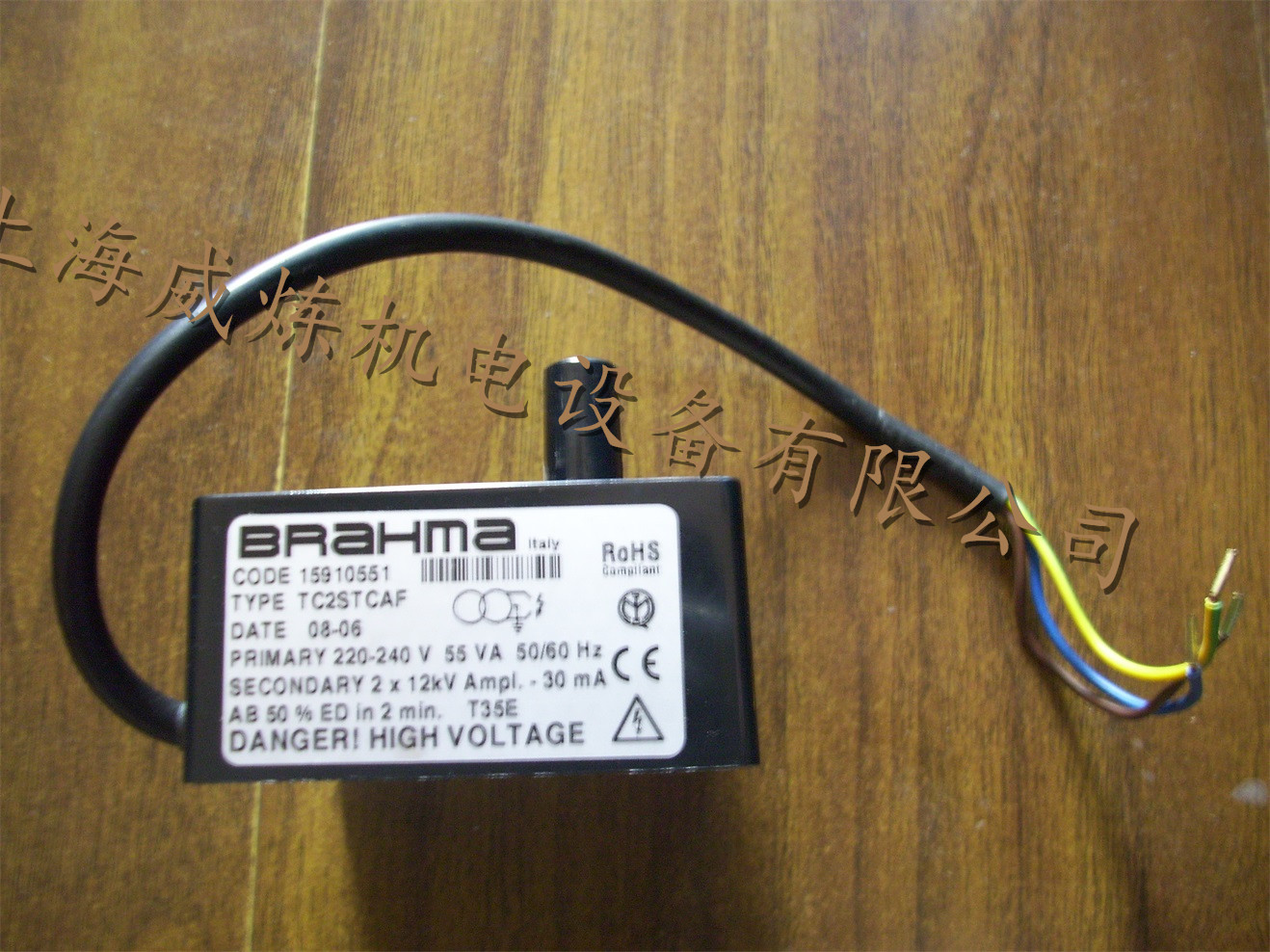

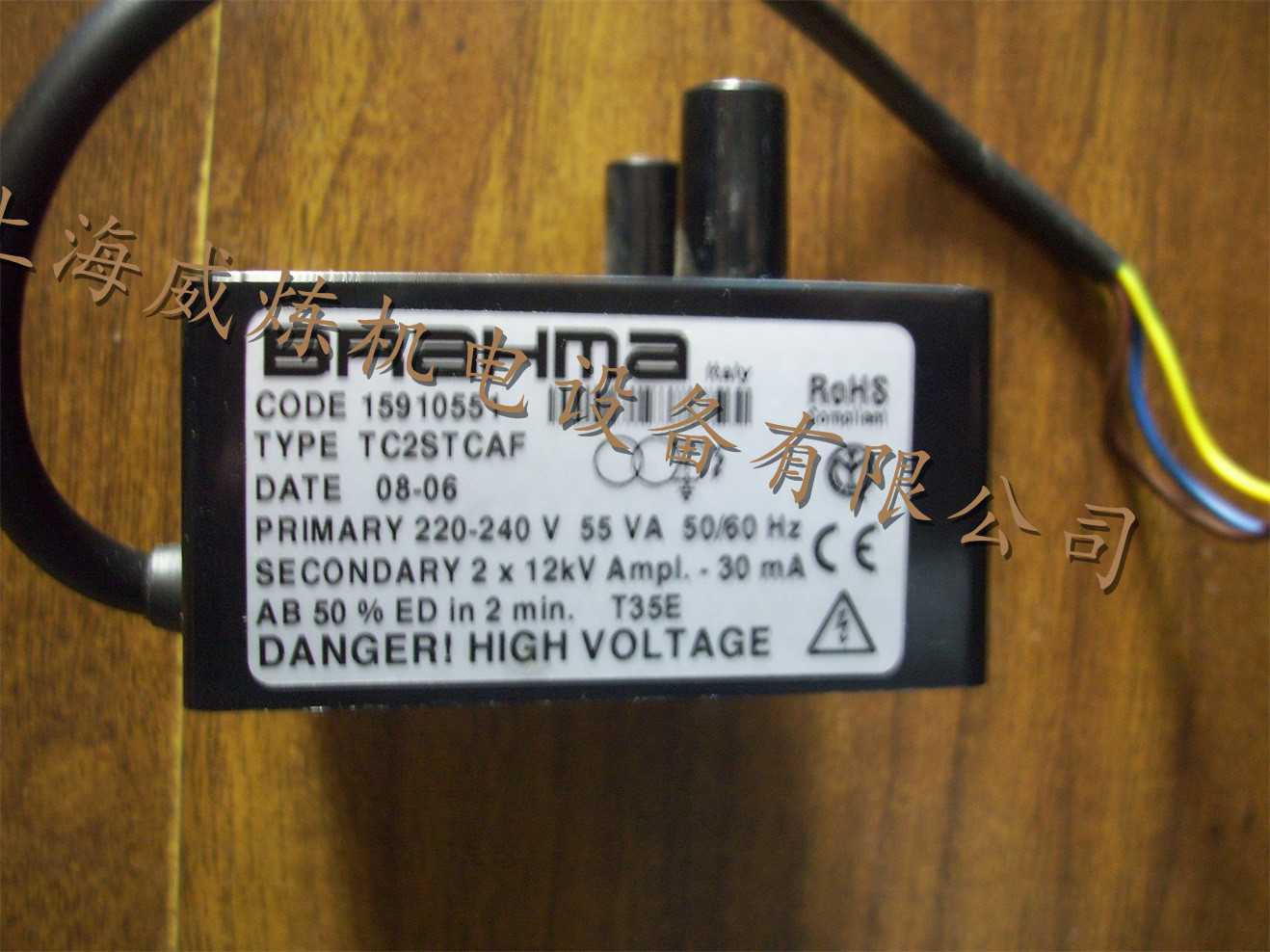

TC...S系列点火变压器
品牌：Brahma（布拉玛）
产地：意大利
产品介绍
This range of electronic ignition transformers is characterized by extremely limited overall dimensions and is particularly suitable to equip water cleaners, forced draught burners for gas and light or heavy oil, for civil and industrial applications. The working principle is due to the generation of high frequency voltage by means of an electronic oscillator; the resulting voltage is then increased by using a winding with ferrite nucleus. In this way it is possible to reach output voltage values up to 15 kV.
All types can be supplied with filter to minimize the emission of electromagnetic interference. In this way this series of electronic transformers is in compliance with the directive 89/336/EEC without the use of external filters.
Followings are the main features of this range of transformers:
•available with inbuilt anti-emission filter;
•100% duty cycle;
•limited weight and overall dimensions;
•high efficiency and ignition power;
•low consumption;
•single pole or dual pole high voltage output;
•different fixing and connecting systems;
•Inbuilt protection against short circuit;
•In oil and gas burners, the safety of ignition
transformers depends on the control unit.
型号表
TC1...S TC1...SF TC2...S TC2...SF
Number of poles 1 1 2 2
Output peak voltage kV 15 15 2x12 2x12
Rated output voltage kV 5.5 5.5 2x(2.8...3.3) 2x(2.8...3.3)
Output peak current mA 45 45 55 55
Rated output current mA 15 15 20 20
Output voltage frequency kHz 6 6 8.5 8.5
Output voltage frequency kHz 10 10 12 12
Consumption VA 25 25 30 30
技术参数
主电压 220/240V 50/60Hz
110/120V 50/60Hz
运行温度 -10ºC...+60ºC
保险丝 F1A 250V

|
